E-Bike Battery Replacement: Understanding Connectors and Compatibility
Replacing an e-bike battery requires more than finding a battery that looks similar. The replacement must match your bike's voltage, connector type, mounting system, and charger to avoid damage, charging failures, or safety risks. By checking these specifications first, you can select a compatible battery that restores range and performance safely.
Why Battery Replacement Is More Than Swapping the Box
E-bike batteries integrate with the controller, motor, and charger through electrical and mechanical interfaces. A mismatch in any area can prevent the bike from powering on, damage components, or create hazards. Official safety guidance stresses that batteries and chargers must be properly matched rather than chosen based on appearance alone.
As the U.S. Consumer Product Safety Commission memorandum notes, lithium-ion battery systems require compatible electrical and physical specifications for safe use. Treating replacement as a simple box swap ignores these critical requirements and can lead to expensive repairs or worse.
This guide walks through the key compatibility factors—connectors, voltage, BMS, mounting, and charger—so you can make an informed choice whether sourcing an OEM replacement or an aftermarket option.
Identifying Your Current Battery Connector Type

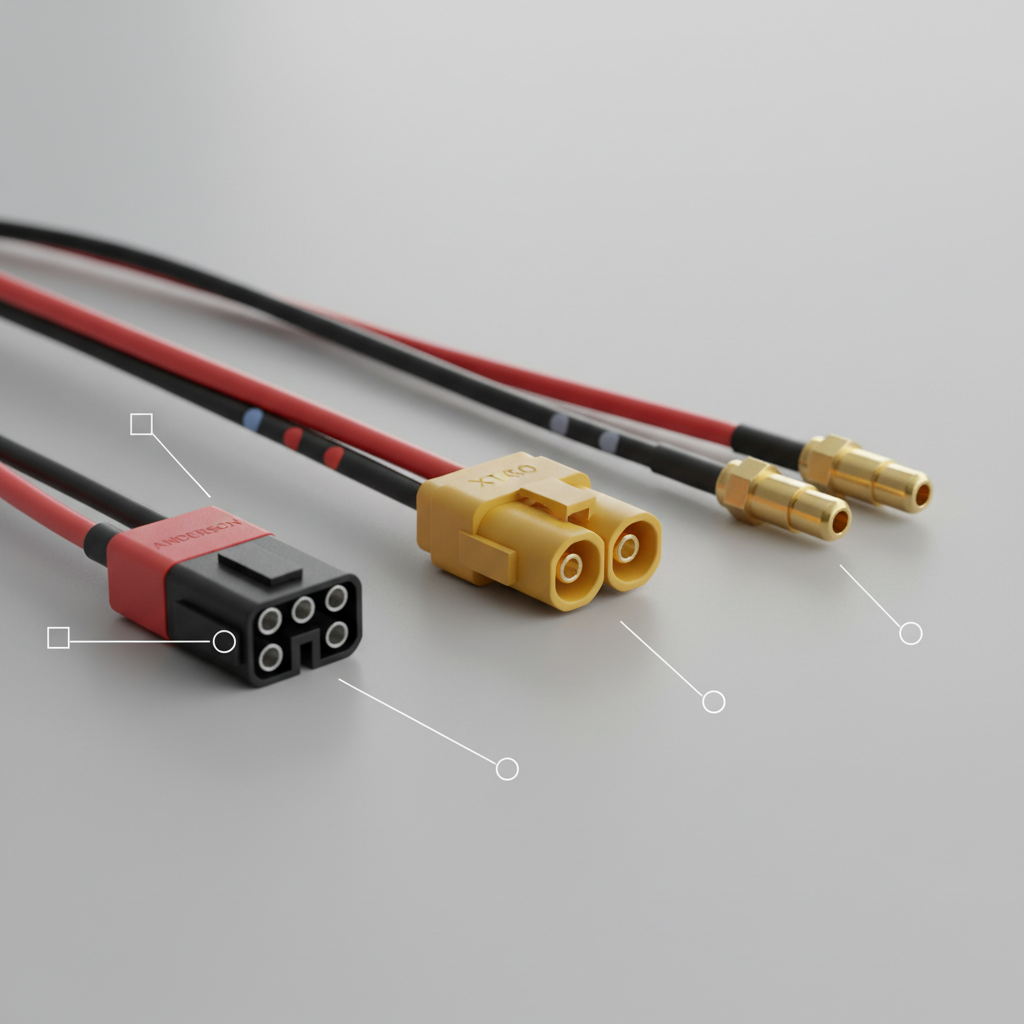

The connector is the physical and electrical bridge between the battery and the bike's wiring harness. Common types include Anderson Powerpole, XT60, bullet connectors, and proprietary plugs used by specific manufacturers.
To identify yours, unplug the battery (following manufacturer safety steps) and inspect the plug shape, pin count, and color coding. Look for markings or measure the housing. Many bikes use 2-pin or 3-pin connectors for power, with additional pins for communication in advanced systems.
Connector appearance alone does not guarantee compatibility. A similar-looking plug may have a different pin layout or current rating, leading to poor contact or overheating. Always verify the exact model against your bike's documentation or wiring diagram.
Educational resources like wiring diagrams can help you understand polarity and layout before purchasing a replacement. One example from academic sources shows how positive and negative leads plus BMS wiring appear in typical packs.
Voltage Matching: The Most Critical Check
Voltage is the foundation of compatibility. Your replacement battery's nominal voltage must align with the controller and motor ratings. Common e-bike system voltages are 36V, 48V, 52V, and 72V.
Using a higher-voltage battery on a lower-rated controller can damage electronics, while a lower-voltage pack may deliver insufficient power or trigger error codes. Check your existing battery label, controller specs, or display for the rated voltage.
Here is an illustrative radar chart showing how compatibility factors vary across common voltages. The scores represent heuristic decision difficulty rather than measured performance.
E-Bike Battery Compatibility Factors by Common Voltage
Use after the voltage section to show that battery selection depends on more than nominal voltage.
View chart data
| Series | Voltage Match | Connector Type | BMS Fit | Mounting Fit | Size Fit | Safety Margin |
|---|---|---|---|---|---|---|
| Compatibility Fit | 5.0 | 5.0 | 4.0 | 3.0 | 2.0 | 3.0 |
Illustrative compatibility scoring built from writer_evidence and targeted web notes. Voltage match is the primary hard requirement; connector type and BMS must also be checked; physical fit and safety margin are heuristic gating factors, not measured statistics. Scores are conservative and intended to show relative decision difficulty, not performance.
This chart highlights that voltage match is usually the strongest starting point, but other factors like mounting and safety margin still require attention.
Battery Management System (BMS) and Wiring Considerations
Most modern e-bike batteries include a BMS that protects against overcharge, over-discharge, and thermal issues. The replacement pack should have a BMS rated for the same cell configuration and current demands.
Wiring differences matter too. Some packs route communication wires through the connector for features like fuel gauges or smart charging. Mismatched BMS setups can cause the bike to refuse charging or display errors.
Background resources from university projects illustrate typical BMS placement and wiring in e-bike systems. When in doubt, compare the new battery's specifications sheet against your original pack.
Physical Mounting and Frame Fit
Beyond electronics, the battery must physically fit your frame. Check the mounting rails, cradle, or bracket system. Some batteries slide into integrated rails while others use straps or quick-release mounts.
Measure the space available in the frame triangle or downtube. A larger-capacity battery may offer more range but won't fit if the dimensions exceed your bike's design. Official e-bike safety documents emphasize proper equipment fit as part of safer overall use.
Charger and Plug Compatibility
The charger must match both the battery's voltage and chemistry. Even if the plug shape is identical, a charger with the wrong output can damage cells or fail to charge properly.
City safety guidance on lithium batteries warns that using a charger with the same plug shape is not sufficient when voltage or current requirements differ. Always use the charger designed for your replacement battery or confirm exact compatibility with the seller.
Capacity, Discharge Rating, and Upgrade Considerations
Higher capacity (measured in watt-hours or amp-hours) generally provides longer range, but it does not automatically mean the battery is compatible. The discharge rating (continuous and peak amps) must suit your motor and controller to avoid voltage sag or overheating.
Upgrading range is popular among commuters, but verify that the new pack works with your existing controller. Some upgrades require no changes, while others may need a different charger or minor wiring adjustments.
Battery capacity alone does not determine full compatibility. Focus on the full specification match rather than just the Ah or Wh number on the label.
'Universal' Batteries: What the Label Really Means
Batteries marketed as universal still require verification against your bike's voltage, connector, mounting, and charging needs. The term often means the seller offers multiple connector options or adaptable mounts, not that the battery works with every e-bike.
Avoid assuming a universal label solves all compatibility problems. Cross-check the exact specs before purchase to prevent returns or damage.
Step-by-Step Checklist for Choosing a Replacement Battery
Use this practical checklist before buying:
- Record your current battery's voltage, capacity, connector type, and dimensions.
- Note the controller and motor voltage rating from the bike's manual or display.
- Identify the exact connector model and pin configuration (take photos).
- Measure the mounting space and note the rail or bracket style.
- Confirm the charger output voltage and plug type.
- Compare the new battery's full specifications against your notes.
- Check whether the BMS is rated for your system's current draw.
- Verify seller return policies in case of mismatch.
Following these steps helps DIY owners and fleet operators avoid common regrets.
OEM vs Aftermarket Replacement Options
OEM batteries provide exact fit and compatibility but can be expensive and hard to source for discontinued models. Aftermarket or standardized packs often cost less and may offer higher capacity, but they require careful spec matching.
For older bikes, aftermarket options with common connectors can keep the bike running longer. When proprietary protocols are involved, original documentation or manufacturer support becomes essential.
Safety Reminders for Battery Handling
This article discusses comfort and setup advice for e-bike battery replacement. It does not constitute medical advice, diagnosis, or treatment. Lithium-ion batteries carry inherent risks if mishandled. If you experience issues with your battery or have an existing medical condition that could be affected by electrical systems, consult qualified professionals.
Always follow proper removal and installation procedures, avoid forcing connectors, and use only matched chargers. Proper compatibility reduces overheating risks and supports safer operation.
When to Consider Professional Help
If your bike uses a proprietary connector, communication protocol, or integrated smart system, professional installation may be the safer choice. Shops familiar with your brand can verify full compatibility and perform any necessary firmware updates.
For standard connector setups and straightforward voltage matches, many technically minded owners successfully complete the replacement themselves using the steps above.
By prioritizing voltage matching, correct connectors, and physical fit, you can confidently select a replacement battery that restores your e-bike's performance without unexpected problems. Taking time to verify specifications upfront saves time, money, and frustration down the road.
