E-Bike Controller Compatibility: Match Voltage, Current, and Connectors
Use this e-bike controller compatibility checklist to compare voltage, current, wiring, controls, connectors, and fit before you buy or connect a replacement.
Do not assume a replacement controller is universal or plug-and-play. Treat e-bike controller compatibility as a system-specific match involving the battery’s stated voltage, the controller’s current specifications, motor wiring, connector functions, display and throttle interfaces, programming requirements, and physical fit. Disconnect the battery before inspecting the wiring, then mark each comparison point documented, contradicted, or unverified. An unknown value is not a match.
Build the E-Bike Controller Compatibility Match Sheet
Disconnect the battery before inspecting or photographing the system. Start your e-bike controller replacement comparison by recording the existing bike and candidate controller on one match sheet.
| Compatibility point | Evidence from the existing bike | Candidate-controller detail to confirm |
|---|---|---|
| Battery voltage | Battery label, original controller label, or manual | Nominal voltage or input range |
| Controller current | Original input, phase, peak, and adjustable-limit fields, if stated | The same current terms, values, and adjustment limits |
| Motor wiring and compatibility | Motor model, power information, sensor, and signal wiring | Supported motor arrangement and connections |
| Connector functions and pinout | Connector photos, orientation, wiring diagram, and pin assignments | Matching functions and pinout, not just housing shape |
| Display, throttle, and other controls | Existing display, throttle, brake, and switch models and functions | Supported controls, signals, and communication method |
| Programming or configuration | Existing settings, communication details, and required accessories | Required software, interface, and controller-family support |
| Enclosure, cable, and mounting fit | Available space, hole spacing, cable reach, and connector clearance | Dimensions, cable exits, mounting points, and installation constraints |
Mark every row documented, contradicted, or unverified. A missing value remains unverified, while a documented conflict is contradicted. Do not infer a match from a similar plug, wire color, wire count, nominal motor wattage, or a “universal” product label. Compare the original motor and controller information and connector arrangement instead of assuming a generic controller will work, consistent with community replacement guidance.
Confirm Battery-to-Controller Voltage Compatibility
The replacement controller must be rated for the battery’s stated system voltage or a compatible input range. Read the battery label and original controller information together, then compare them with the candidate controller’s specifications.
Use the candidate controller’s voltage requirement as the deciding information, not the motor label or connector. If the battery label is incomplete or the candidate uses unclear terminology, mark the row unverified and request the missing specification. If the documents show conflicting voltage requirements, mark the result contradicted and do not order or connect the controller.
Compare Controller Current Limits With the Existing System
Compare the current fields listed for the battery, original controller, motor documentation, and candidate controller. A larger amperage number alone does not establish an equivalent replacement or a suitable upgrade.
Record each field exactly as labeled, including battery or input current, phase current, peak current, and adjustable limits when provided. Compare those fields with the battery’s stated capability or protection information, original controller settings, motor documentation, wiring, and intended use. For an equivalent replacement, look for agreement with the existing system. For an upgrade or programmable change, require agreement across those elements before treating the change as suitable.
If a current field is missing or cannot be compared with the original system, leave that row unverified and request the model-specific information. If the stated current requirements conflict, mark the row contradicted rather than treating the higher figure as an automatic upgrade.
Verify Motor Wiring and Control Interfaces by Function
Connector appearance does not prove e-bike controller compatibility. Compare each motor and control function with a model-specific wiring diagram, manual, or manufacturer confirmation, including a pinout record for the relevant controller and bike system. The supplied manual covers its named model, not a universal wiring standard, so documented controller connection functions take precedence over plug appearance or wire color.
Match the Motor-Side Connections and Signals
Compare the candidate controller’s motor power connections and sensor or signal interfaces with the existing motor’s wiring arrangement. Record each function and pin assignment separately rather than inferring it from the connector housing.
Photograph every connector in place and preserve its orientation before unplugging anything. If the motor is identified only by a broad nominal power label, leave its sensor and signal arrangement unverified. Do not connect a candidate for a trial run when the pinout or wire functions are unknown.

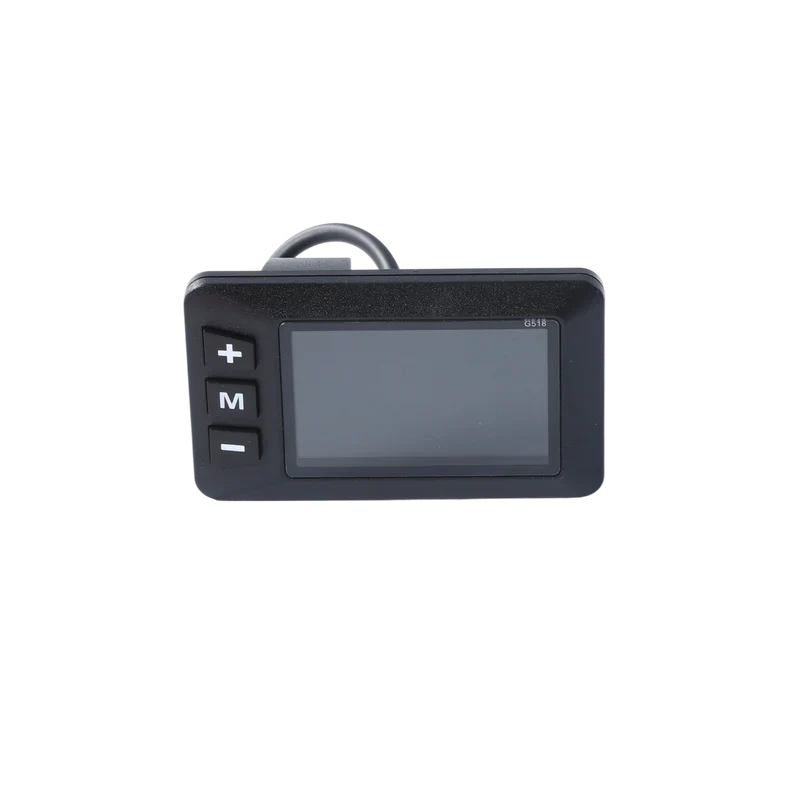

Confirm Display, Throttle, and Other Control Interfaces
Check the display, throttle, brake, switch, and other controls as separate interfaces. The candidate documentation should identify the relevant connector functions and, where specified, the communication or signal method.
Physical insertion does not prove electrical or communication compatibility. Record whether the controller needs a programming interface or accessory, because a programming method is not necessarily shared across controller families. For a confirmed CEMOTO D-Series Fardriver controller, the D-Series Fardriver programming dongle is described for CEMOTO D-Series Fardriver controllers only. That product-specific fit does not establish compatibility with an unknown controller or bike system.
Confirm Physical Fit and Documentation Before Ordering
An electrically plausible candidate can still fail the physical-fit check. Measure the available enclosure space, mounting-hole spacing, cable-exit locations, connector clearance, and cable reach, then compare those measurements with the candidate’s dimensions and mounting arrangement.
Save readable photos of the battery, original controller, motor labels, and all connectors. Keep the candidate’s specification sheet, wiring diagram, compatibility notes, dimensions, programming requirements, and mounting details with those photos. Consider heat management and weather exposure at the actual installation location rather than treating a generic enclosure rating as a complete fit assessment.
Use the Evidence to Choose Buy, Verify, or Escalate
Use the completed match sheet to assign one outcome. Buy requires agreement across every required row; missing or incomparable information means Verify, while a confirmed conflict or unverifiable pinout means Escalate.
Before applying that result, complete these six actions: (1) disconnect the battery, (2) collect labels, model numbers, connector photos, documents, measurements, and candidate specifications, (3) compare voltage, (4) compare current fields and motor compatibility, (5) compare connector functions and control interfaces, and (6) confirm physical fit and installation conditions.
| Result | Required evidence | Next action |
|---|---|---|
| Buy | Every required row has documented agreement | Order the match and follow its model-specific instructions |
| Verify | The candidate may fit, but one or more fields are missing, unclear, or incomparable | Request the missing voltage, current, pinout, interface, or mounting information |
| Escalate | Voltage is incompatible, specifications conflict, or pinouts and wire functions cannot be verified | Do not connect it; seek qualified model-specific help |
For e-bike controller compatibility, order only when the completed sheet supports every required match. If the result is Escalate, leave the replacement disconnected and seek qualified model-specific help. For a confirmed CEMOTO D-Series Fardriver controller match, our D-Series programming adapter is the narrow accessory path described for that controller family. It is not evidence that an unverified controller fits. If every row is documented and compatible, order that specific match; otherwise, request the missing model information before connecting anything.
Frequently Asked Questions
These questions cover higher-current changes, connectors that look alike, and conflicting voltage information.
Can a higher-current controller be an e-bike controller replacement upgrade?
Not based on the current rating alone. Treat it as an upgrade only when the battery’s stated capability or protection information, wiring, motor, controller settings, and intended use agree. Otherwise, keep the candidate in Verify status and do not raise the current setting.
What if a replacement connector fits but its pinout is unknown?
Leave the connector disconnected. A matching housing does not establish the same functions or pin assignments, so obtain a controller-and-bike-specific wiring diagram or qualified help before making the connection. An unverifiable pinout is an Escalate result.
What should I do when the battery and controller voltage information conflicts?
Do not order or connect the controller. Mark the voltage row Contradicted, resolve the conflict using the battery and candidate-controller documentation, and seek qualified model-specific help if the conflict remains.
