How to Tune Your 6000W E-Moto Controller for Technical Trail Riding
Tuning the controller on your 6000W electric dirt bike can transform how the machine behaves on technical trails, giving you smoother traction on loose climbs, better modulation through switchbacks, and more predictable control on descents. The key is adjusting throttle response, torque delivery, and regenerative braking to match the demands of low-speed precision rather than outright speed, while always staying inside the system's safe limits.
Understanding Your E-Moto Controller Parameters
High-power modular e-motos stand out because their controllers often expose adjustable settings that locked-down proprietary systems hide. These typically include throttle mapping (how quickly power follows your input), torque curve (how power builds across RPM or speed), and regenerative braking strength (how much deceleration occurs when you roll off the throttle or use the brake). For technical trail riding, the goal is not maximum power but usable, predictable delivery that keeps the rear wheel hooked up on roots, rocks, and loose dirt.

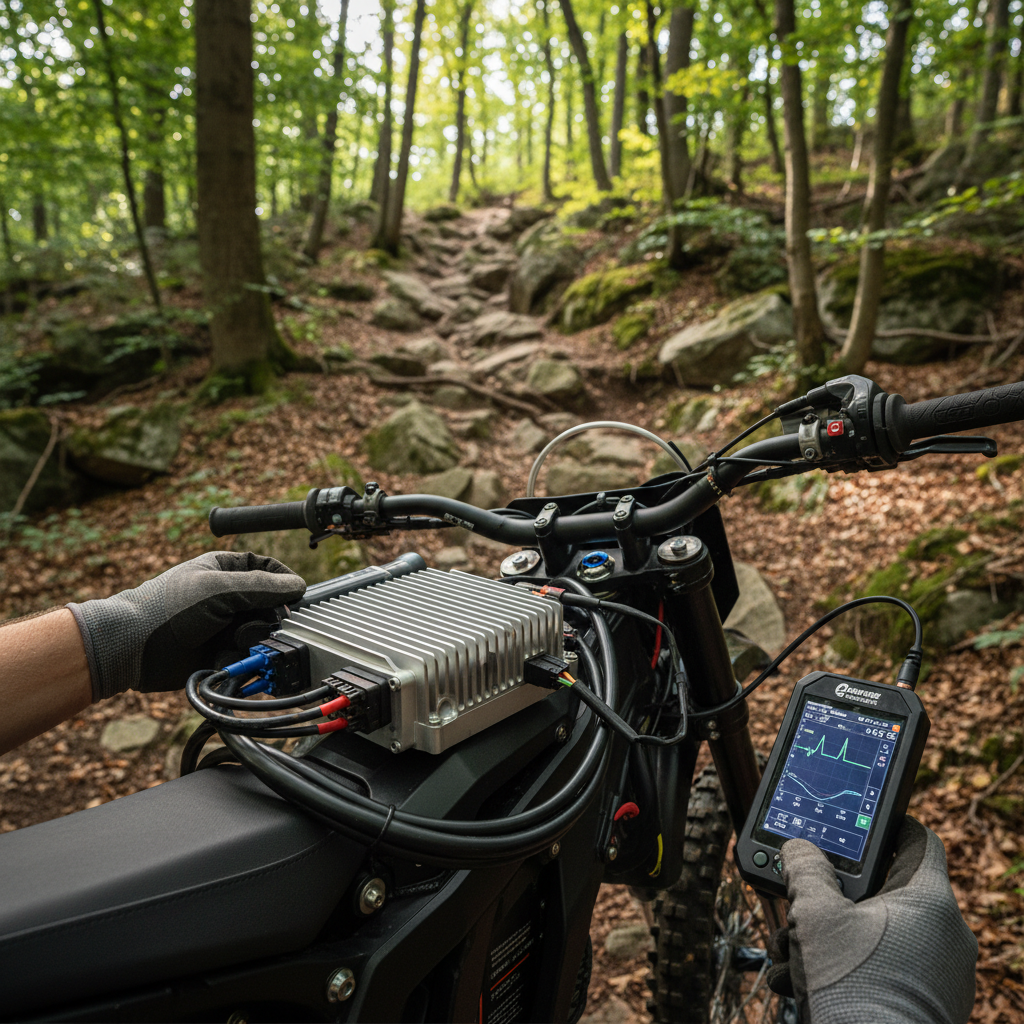

Many open e-moto systems expose controller parameters that can change throttle response, low-speed control, and regen feel. Start by connecting to the controller using the manufacturer's software or app—most require a USB cable or Bluetooth dongle and run on a laptop or smartphone. Always back up your current settings before making changes so you can revert if the bike feels worse.
Key Settings to Adjust for Technical Trails
Focus on three main areas when tuning for steep, rooty, or loose terrain.
Throttle Response Mapping
A sharp throttle map can cause sudden surges that break traction on technical sections. Beginners and intermediate riders often benefit from a softer initial response that builds progressively. This helps with precise low-speed maneuvering on switchbacks and when picking lines through obstacles.
Progressive throttle application helps preserve traction on loose or technical surfaces. Begin with a linear or slightly delayed map for the first 20-30% of throttle travel. Test at walking speeds on loose ground and gradually sharpen only if the bike feels too sluggish for quick corrections.
Torque Curve Customization
The torque curve determines how aggressively power comes on at low speeds. For trails, a flatter or gently ramping curve often works better than a peaky one because it reduces wheelspin on climbs and lets you modulate power without constant clutch-like wrist movements.
Riders often find that overly aggressive regen or a sharp throttle map can make the bike feel less settled on steep or loose trails. Set the low-end torque to around 60-70% of maximum for initial trail testing. This provides enough grunt for steep inclines without overwhelming available grip on wet roots or sand.
Regenerative Braking Strength
Regen can act like engine braking to control speed on descents, but too much can unsettle the bike on loose surfaces. Conservative settings (30-50% of maximum) usually feel more stable for mixed trail use. Adjust in small increments and test on the actual terrain where you ride most.
Any regenerative-braking change should preserve predictable deceleration and stable control, especially on low-traction descents. Monitor how the bike behaves when you roll off the throttle mid-corner or on a rocky downhill—good regen should slow you smoothly without locking the rear wheel or shifting weight abruptly.
Practical Tuning Scenarios for Different Trail Conditions
One fixed setting rarely works perfectly across all terrain. The best approach changes with the specific demands of each section.
Use this radar chart as a visual guide for relative priorities. The values are illustrative only and based on common rider experiences with high-power e-motos—they are not measured data or official specifications.
Relative Controller Tuning by Trail Scenario
Illustrative guidance only: relative settings on a 1–10 scale, not measured data.
View chart data
| Series | Throttle Response | Torque Curve Aggressiveness | Regen Strength |
|---|---|---|---|
| Steep Climbs | 5.0 | 8.0 | 3.0 |
| Loose Surfaces | 4.0 | 5.0 | 2.0 |
| Technical Singletrack | 6.0 | 6.0 | 4.0 |
| Descents | 3.0 | 4.0 | 8.0 |
Derived from the requested scenario matrix and hidden tradeoffs guidance; values are heuristic/practical guidance only, using a 1–10 relative scale (low=1–3, medium=4–6, high=7–10). No real-world measurements are implied.
For steep climbs, prioritize strong but controlled mid-range torque while keeping initial throttle gentle to avoid looping out. On loose surfaces, soften everything—especially the first 30% of throttle and regen—to maximize available traction. Technical singletrack benefits from linear response that supports frequent small inputs. On descents, higher regen can reduce brake use, but only to the point where the rear tire stays planted.
Common Tuning Mistakes and How to Avoid Them
Many riders new to controller tuning make the bike harder to ride instead of easier. Common issues include setting throttle too aggressively, which creates twitchy low-speed behavior, or maximizing regen, which can cause abrupt weight transfer on loose downhills.
Too-snappy throttle response often leads to unintended surges that upset balance in tight sections. Torque curves tuned purely for peak punch feel exciting in testing but become difficult to meter on real trails. Overly strong regen frequently unsettles the rear wheel and increases rider fatigue.
Change only one parameter at a time and test immediately on similar terrain. Keep a written log of each setting combination and how the bike felt. If the bike becomes harder to place precisely or you notice more wheelspin, revert to a softer baseline.
Controller tuning should stay within the bike’s and battery’s recommended operating limits to avoid overheating, instability, or component stress. Watch motor and controller temperatures during longer rides—aggressive maps can generate extra heat on repeated climbs.
Safety Checklist Before and After Tuning
Before heading to the trails with new settings, complete this practical audit:
- Verify all changes stay inside manufacturer-specified voltage, current, and temperature limits.
- Test throttle and regen at very low speeds on flat, loose ground first.
- Ride a familiar short loop that includes climbs, descents, and technical features.
- Check for abnormal heating after 15-20 minutes of mixed riding.
- Confirm the bike still stops predictably and the rear wheel does not lock unexpectedly.
- Have a backup method to restore factory or previous safe settings in the field.
Braking behavior should remain predictable and stable after tuning regenerative braking. If you experience any loss of control, unusual noises, excessive heat, or warning lights, stop riding and revert the tune immediately.
Important Safety Note: This article discusses comfort, setup, and rideability advice for controller tuning on technical trails. It does not constitute mechanical, electrical, or medical advice. Incorrect tuning can reduce traction, cause overheating, or create loss-of-control risks. Always verify compatibility with your specific 6000W e-moto model, preserve safe operating limits, and consult qualified professionals if you have persistent issues or existing mechanical concerns.
When Aggressive Tuning May Not Be the Right Choice
Do not chase aggressive controller tuning if your riding is mostly slow, technical trail work and you lack an easy way to test changes in the same conditions. In that scenario, the risk of making the bike harder to modulate often outweighs any perceived gains in snap or braking.
Avoid sharpening settings further if you already struggle with basic control, notice frequent wheelspin, or ride primarily on loose or variable traction surfaces. A conservative tune that prioritizes predictability usually delivers more real-world enjoyment on demanding trails.
For comparison, riders exploring different system voltages may find useful context in 72V vs 60V Electric Dirt Bikes: Which is Best for Trails?. Those maintaining their own machines should also review the E-Bike Hub Motor Replacement: A Step-by-Step DIY Guide for related service knowledge.
If you are shopping for complementary gear or accessories, consider browsing our electric scooter collection for lightweight options that pair well with trail-focused e-motos. Additional practical reading includes the E-Bike Battery Replacement: Understanding Connectors and Compatibility guide to ensure your power system stays reliable after modifications.
Final Tips for Long-Term Trail Performance
After dialing in your settings, periodically re-check them as components wear or firmware updates become available. Many controllers allow saving multiple profiles—create one conservative “trail” map and one slightly sharper “play” map so you can switch quickly.
Remember that tire choice, suspension setup, and rider technique often have a larger impact than fine controller tweaks. Combine thoughtful tuning with smooth riding inputs for the best results on technical terrain.
As this Motorcycle Safety Foundation guide explains, smooth and progressive control inputs remain fundamental to maintaining traction in challenging conditions. Similarly, UNECE vehicle regulations emphasize the importance of predictable braking behavior for overall stability. For broader vehicle safety principles, refer to resources from the National Highway Traffic Safety Administration.
Tuning your 6000W e-moto controller is an iterative process that rewards patience and careful testing. Start conservative, document your changes, and let real trail feedback guide further adjustments. When done responsibly, the result is a machine that feels more capable and easier to ride exactly where it matters most—on the demanding technical trails you love.
