A Practical Guide to E-Bike Parts Diagrams and Exploded Views
Trace an e-bike parts diagram from assembly to callout, record model and side details, and know when to pause for documentation or support before ordering.
An e-bike parts diagram or exploded view is a visual assembly map—not proof that a replacement will fit. Start by locating the correct assembly, tracing its callout to the parts list, and recording the model or revision, viewing convention, side, assembly level, and distinguishing features. Treat the result as a candidate until no unresolved detail could change the part’s identity, fit, orientation, or safe use. For electrical, structural, braking, suspension, or other safety-critical parts, pause before ordering or installing and consult the applicable documentation or qualified support.
Start With the Correct E-Bike Parts Diagram and Callout
Use an e-bike parts diagram to document a candidate before comparing listings or adding anything to your cart. The useful result includes the assembly name, diagram context, callout, parts-list wording, and assembly level; compatibility still needs to be confirmed.
- Locate the relevant assembly. Start with the area where the damaged or missing component is installed, such as a wheel, drivetrain, frame panel, control, or electrical assembly. Find the assembly or section that contains the component instead of starting with the first similar-looking number.
- Identify the diagram context. Record the diagram title, section name, page or view identifier, and any document or catalog identifier. This helps distinguish a callout from a nearby view or similar assembly.
- Trace the callout. Follow the line, number, or label from the drawing to the corresponding parts-list entry. In an exploded view, the callout connects a location in the drawing with wording in the list. The callout alone identifies only a candidate.
- Read the parts-list description. Copy the wording instead of replacing it with a guess based on appearance. Note whether the entry names a complete assembly, subcomponent, bracket, cover, fastener, spacer, or other hardware.
- Classify the assembly level. Decide whether the listed item is the whole assembly or only the damaged portion. A visible failure may involve a small subcomponent while the diagram identifies a larger assembly—or the reverse.
- Keep the details together. Retain the assembly name, diagram context, callout, description, and assembly level. This is your diagram-based candidate for the identity checks that follow.
For broader purchasing context after the diagram has narrowed the candidate, see our guide to sourcing compatible replacement parts. Its guidance does not replace model-specific confirmation.
Resolve Model, Revision, and Left-Right Orientation
Confirm the exact bike or system identity before treating the callout as ready for ordering. Record the model and any available revision or version identifier, then establish how the drawing defines left and right.
Use the bike label, owner documentation, applicable catalog context, or exact system manual for the model information. Official system documentation can distinguish related component names and variants. For example, the E8000 Series Dealer’s Manual names items such as a chainring unit and chain device alongside model designations. Use it as an example of model-specific documentation, not as a match for another bike or brand.
Determine left and right from the diagram’s stated viewing convention, or from the riding position only when that convention is clear. An isolated, front-facing, reversed, or mirrored illustration can make a side look different. Write down both the convention and the result, such as “right side viewed from riding position.” If the documentation does not establish the convention, record the orientation as unknown rather than choosing based on the picture.

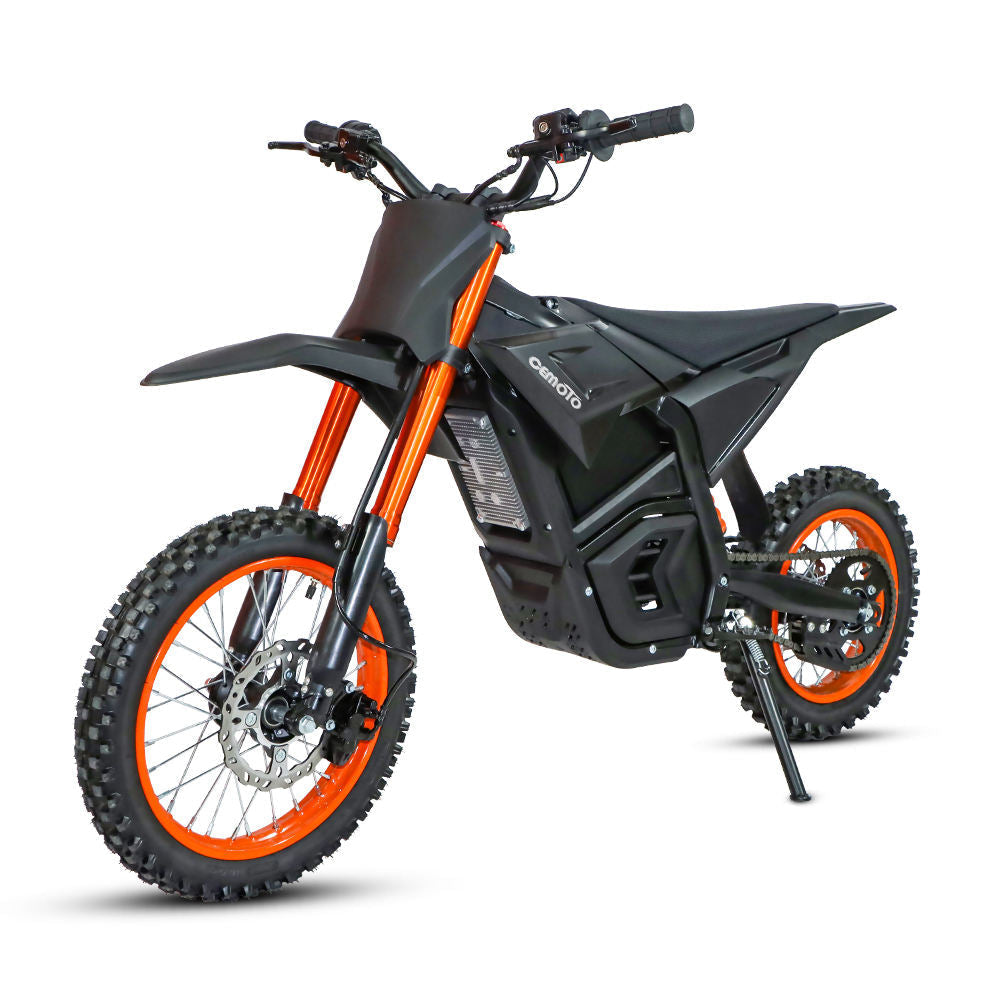

Compare the installed component with the candidate using observations. Shape, mounting pattern, fastener arrangement, connector appearance, labels, and other visible features can distinguish entries when you record them from the bike. As a narrow Cemoto example, the D02/D03 side-panel example separates D02 and D03 models and left/right choices and states that those panels are not interchangeable between those models. That product-specific distinction should not be generalized to every e-bike part.
If the model, revision, viewing convention, side, or distinguishing feature remains unclear, mark it unknown and carry it into the parts-identification record. Do not turn an unresolved identity detail into an ordering choice.
Create a Parts-Identification Record
Complete one record before requesting or ordering a replacement. It separates what the diagram says from what you observed on the bike and makes missing information visible.
| Field | What to record or check |
|---|---|
| Model | Exact bike, system, or frame model shown on the bike or in the applicable documentation |
| Revision/version | Revision, version, production identifier, or unknown if none is established |
| Assembly | The named assembly containing the damaged or missing component |
| Diagram or section identifier | Document title, section, page, view, or catalog identifier |
| Callout | Number, letter, label, or other locator used in the drawing |
| Parts-list description | The parts-list wording copied as shown |
| Assembly level | Complete assembly, subcomponent, bracket, fastener, cover, or other hardware |
| Orientation | Left/right result, viewing convention, and unknown when the convention is unclear |
| Visible features or observed measurements | Shape, labels, mounting pattern, fastener arrangement, connector appearance, or measurements taken as observations |
| Photos | One location photo plus additional photos showing distinguishing faces, labels, and attachment points |
| Unresolved questions | Every missing or conflicting detail that could change identity, fit, orientation, or safe use |
Use measurements only to distinguish candidates, and label them as observations rather than product specifications. Keep enough diagram context with the photos to connect the physical component to the callout. The record organizes the review; it does not establish fit by itself.
Separate a Visual Candidate From Compatibility Confirmation
A diagram match is ready for an order review only when the candidate is stated precisely and no unresolved question could change its identity, fit, orientation, or safe use. If any of those conditions remains open, consult the documentation or pause for qualified support.
Proceed to an order review when the model or revision, assembly, callout, parts-list wording, assembly level, orientation, visible observations, and applicable product or catalog information agree without conflict. If the parts list names only a larger assembly, do not silently assume that the smaller damaged item is available separately.
Seek applicable documentation when a callout or parts-list relationship is incomplete, the model or revision is unclear, the illustration conflicts with the bike, or a distinguishing feature does not match. For structural, load-bearing, braking, suspension, or other safety-critical parts, keep the decision paused until applicable documentation or qualified support resolves the match. For batteries, chargers, and related electrical components, use manufacturer-recommended components for the device rather than matching by connector shape or appearance; the CPSC guidance supports the manufacturer-recommended battery-pack and charger boundary, not fit for any particular bike.
| Action state | Use it when |
|---|---|
| Proceed to order review | The identity fields and applicable product or catalog information agree, with no unresolved detail that could change the choice. |
| Seek documentation | The model, revision, orientation, callout relationship, or assembly level is incomplete, or the illustration and bike do not agree. |
| Pause for qualified support | The match involves an electrical, structural, braking, suspension, or other safety-critical component, or the available information conflicts. |
Send the Evidence With One Focused Support Question
When the diagram or catalog does not settle the identification, send the completed record rather than a single photo or a broad request to “find this part.” Include the model and revision, assembly, diagram or section identifier, callout, parts-list wording, assembly level, side and viewing convention, observed features or measurements, and location and distinguishing-face photos.
End with one decision-changing question: “Does the named candidate correspond to this callout for my stated model or revision and [left/right] side?” Adapt the bracketed side only when the orientation is established. For an unresolved battery, charger, or related electrical component, use the manufacturer’s approved-part documentation or qualified support rather than a visually similar substitute.
After you receive a confirmation, compare the returned identification with the applicable product or catalog information before adding a replacement to your cart. We invite you to review accessories only after you have a confirmed or confirmation-ready candidate; the collection itself is not evidence of fit. If the answer remains unresolved, leave the ordering decision open and retain the record for the next documentation or support review.
Frequently Asked Questions
These quick answers cover diagram terminology and the final identification decision without replacing the detailed checks above.
What Is an Exploded E-Bike Parts Diagram?
An exploded view shows related items separated visually and uses callouts to connect drawing locations with parts-list entries. Its main value is narrowing the search to a named item or assembly.
How Do I Identify an E-Bike Replacement Part From a Diagram?
Copy the parts-list wording and note the assembly level. If the list names only a larger assembly or leaves the side unclear, ask about that specific relationship instead of assuming the smaller item is separately orderable.
How Do I Order the Correct E-Bike Replacement Part?
Move the candidate to your cart only after the exact model or revision and side are established and the applicable product information agrees. If either remains unknown, keep the order open and send the single focused question from this guide.
